One of the most practical questions commercial growers ask before purchasing a high-power LED grow light is whether it will work with their facility’s electrical system. The Koray RX-G80-1000W addresses this concern with a universal input voltage range that covers virtually every electrical standard used around the world. This guide covers everything you need to know about the G80-1000W’s voltage requirements, amperage draw, and installation considerations for different regions and facility types.
AC100-277V Universal Input: What It Means
The Koray RX-G80-1000W features a constant-current LED driver with a universal input voltage rating of AC100-277V. This single specification makes the fixture compatible with the full range of commercial and residential electrical systems used globally. Here is what that voltage range covers in practical terms:
At 100-120V, the G80-1000W works with standard North American residential power outlets and dedicated circuits. This is the voltage most commonly found in homes and small-scale growing operations in the United States, Canada, and Japan. At 200-208V, it supports commercial three-phase power systems common in North American office buildings and light industrial facilities. At 220-240V, it covers the standard residential and commercial voltage used throughout Europe, Australia, China, and most of Asia and South America. At 277V, it works with the high-leg commercial lighting circuits found in large warehouses and industrial facilities across North America.
Amperage Draw at Different Voltages
Understanding how the G80-1000W’s amperage draw changes with voltage is essential for proper circuit planning. Because the fixture maintains a constant 1000W power output regardless of input voltage, the amperage decreases as voltage increases, following the relationship P = V x I. Here is the approximate amperage draw at common voltages:
At 120V, the G80-1000W draws approximately 8.3 amps. This means it requires a dedicated 15-amp or 20-amp circuit. On a 15-amp circuit, the G80 uses about 55% of the available capacity, leaving limited room for additional equipment. On a 20-amp circuit, it uses about 42% of capacity, which is the recommended configuration for 120V installations.
At 240V, the amperage drops to approximately 4.2 amps, which means you can safely run two G80-1000W fixtures on a single 15-amp circuit. At 277V, the draw decreases further to about 3.6 amps, allowing even more fixtures per circuit. This scalability at higher voltages is a major advantage for large commercial installations where minimizing the number of dedicated circuits reduces electrical installation costs significantly.
Does Voltage Affect Light Output?

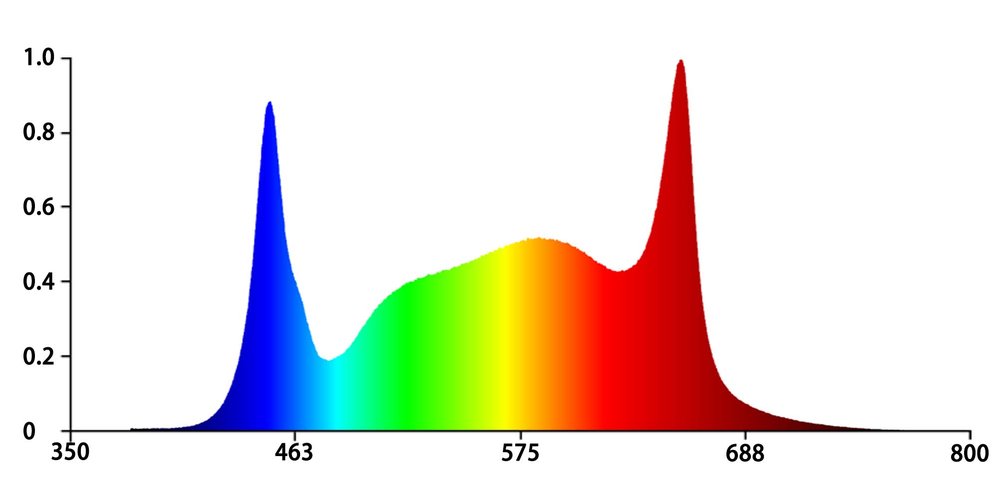

A common misconception is that running a grow light at lower voltage reduces its light output. With the Koray RX-G80-1000W, this is not the case. The fixture’s advanced constant-current LED driver maintains stable, regulated power delivery to the LED array regardless of input voltage within the AC100-277V range. Whether you supply 120V or 277V, the G80-1000W delivers the same 2160 μmol/s PPF output with the same G24B full-spectrum distribution.
This consistent performance extends to the PPFD distribution as well. The Koray Secondary Optics system produces the same uniform light pattern at every voltage: 1500 μmol/m²/s at 0.2m height and 1250 μmol/m²/s at 0.3m height, measured as 64-point averages in a dark room at 1.2 x 1.2 meters. The hotspot-free uniformity that the G80 series is known for remains identical regardless of your facility’s voltage.
Installation Recommendations for Different Facility Types
For small-scale and residential grows with 120V service, the G80-1000W can be connected to a dedicated 20-amp circuit using standard wiring. Ensure the circuit breaker is rated for continuous load (125% of fixture amperage per NEC guidelines), which means a 15-amp breaker minimum for a single fixture at 120V. Use 12-gauge wire for runs under 50 feet and 10-gauge wire for longer runs to minimize voltage drop.
For commercial facilities with 240V three-phase power, which is common in North American warehouses and converted industrial spaces, the G80-1000W becomes significantly more efficient from an electrical standpoint. At 4.2 amps per fixture, you can install multiple G80 units on shared circuits, reducing the total number of home runs back to the electrical panel. This can save thousands of dollars in electrical installation costs for large-scale operations with dozens of fixtures.
For facilities with 277V commercial lighting circuits, commonly found in large warehouses and distribution centers, the G80-1000W offers maximum electrical efficiency. At just 3.6 amps, the fixture draws minimal current, allowing long cable runs with negligible voltage drop. Many large-scale cannabis cultivation facilities in North America specifically design their electrical systems around 277V for this reason.
International Compatibility
The G80-1000W’s AC100-277V range means it can be deployed in virtually any country without requiring a step-up or step-down transformer. In Europe and Australia where 230V is standard, the fixture operates natively at approximately 4.3 amps. In China and much of Southeast Asia where 220V is the norm, it draws about 4.5 amps. In Japan where 100V residential power is standard, the fixture draws approximately 10 amps and still operates within specification.
This universal compatibility makes the RX-G80-1000W an ideal choice for international operations, research facilities that may need to relocate equipment between sites, and contract manufacturers who supply growers in multiple countries. Koray Lighting ships the G80 to over 60 countries worldwide, and the universal voltage range eliminates the need for region-specific product variants.
Power Quality and Protection Features
The G80-1000W’s driver maintains a power factor greater than 0.9 across the entire voltage range, minimizing reactive power draw and ensuring efficient use of your electrical infrastructure. The high power factor also means the fixture qualifies for utility rebates in many jurisdictions that require PF > 0.9 for commercial lighting installations.
The driver includes built-in protection against voltage spikes, short circuits, and thermal overload, ensuring reliable operation even in facilities with unstable electrical supply. The G80 series carries a 50,000-hour rated lifespan and is backed by Koray Lighting’s industry-leading warranty. The fixture holds ETL, CE, RoHS, and FCC certifications, confirming compliance with safety and electromagnetic compatibility standards across multiple international markets.
Conclusion
The Koray RX-G80-1000W’s AC100-277V universal input voltage range makes it one of the most electrically flexible commercial grow lights available. Whether your facility runs on 120V residential power, 208V commercial three-phase, 240V European standard, or 277V high-leg commercial circuits, the G80-1000W delivers consistent 2160 μmol/s PPF output with the same uniform, hotspot-free PPFD distribution. Combined with Koray Lighting’s 17 years of horticultural lighting expertise and over 200 patents, the G80-1000W is a reliable, globally compatible solution for professional cultivation.
