Can I Grow Strawberries on a Vertical Rack with LED Bars?

Vertical farming is revolutionizing strawberry production. By stacking multiple growing layers under efficient LED lighting, growers can produce 3-5 times more fruit per square meter than traditional single-layer methods. But success depends on choosing the right LED grow lights, configuring shelf spacing correctly, and delivering the precise light recipe that strawberries need. This comprehensive guide covers everything you need to know about vertical rack strawberry growing with LED bars — with proven solutions from Koray Lighting’s GE35 series.

Why Vertical Rack Growing Is Ideal for Strawberries

Strawberries are naturally compact plants with shallow root systems, making them perfectly suited for vertical cultivation. Unlike tall crops like tomatoes, strawberries stay under 30cm in height and spread modestly, so they fit comfortably on stacked shelves. Their preference for cool root-zone temperatures also aligns well with the passive cooling of LED bar systems.

Vertical rack systems offer several advantages specific to strawberry production. First, they maximize space efficiency — a 5-tier rack in a standard room produces five times the yield of a ground-level bed of the same footprint. Second, they improve air circulation around each plant, reducing humidity-related diseases like botrytis. Third, they simplify harvesting at ergonomic heights. And fourth, they enable precise environmental control on a per-tier basis.

Choosing the Right LED Bar for Vertical Strawberry Racks

The LED bar is the heart of any vertical strawberry farm. It must deliver sufficient PPFD for fruiting, fit standard shelf dimensions, operate efficiently in close quarters, and withstand high humidity. Koray Lighting’s GE35 series checks every box:

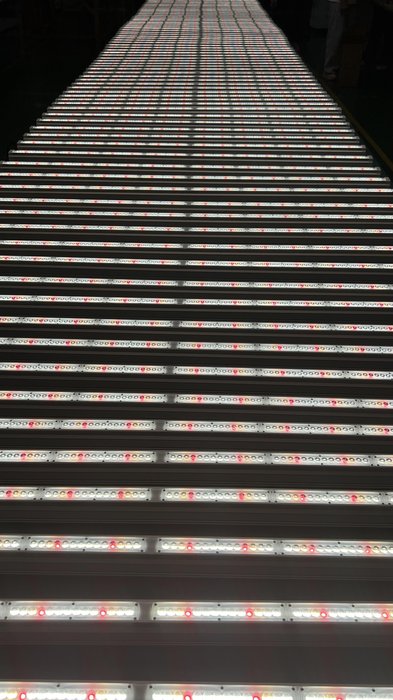

The GE35-120T-F175 is the flagship choice. At 1200mm length and 60W power, it produces 150 umol/s PPF with the F175 full spectrum — specifically formulated for fruiting crops. At 0.2m hanging distance, it delivers 530 umol/m2/s center PPFD. The 38x40mm slim profile leaves maximum room for plant growth, and the IP64 waterproof rating protects against condensation.

For budget-conscious operations, the GE35-60T-F175 offers 30W consumption and 75 umol/s PPF in a compact 606mm package. Two bars per shelf provide adequate coverage for 1.2m shelves, and at 0.2m delivers 535 umol/m2/s — powerful for its modest wattage thanks to Koray’s high-efficiency secondary optics.

Shelf Spacing and Layout Design

Proper shelf spacing is critical for vertical strawberry success. Each tier needs enough room for the LED bar, the plant canopy, and air circulation.

Tier spacing: 0.4-0.5m. This breaks down as: 0.04m for the GE35 bar, 0.15-0.20m for the strawberry canopy, 0.05m for the growing container, and 0.10-0.15m air gap for ventilation. With 0.45m spacing, a 2.5m-tall room accommodates 5 tiers comfortably.

Shelf width: 0.6-0.8m. A 0.6m shelf allows 2 rows of strawberry pots, while 0.8m supports 3 rows. The GE35-120T-F175 at 1200mm spans standard 1.2m shelving units.

Bar placement: 2-3 bars per shelf. For a 0.6m-wide shelf, mount 2 GE35 bars at 30cm spacing. For 0.8m, use 3 bars. Koray’s secondary optical lens design produces wide, even light distribution that overlaps beautifully when bars are spaced correctly.

Lighting Recipe for Vertical Strawberry Production

Target a DLI of 16-20 mol/m2/day for fruiting strawberries. With the GE35-120T-F175 delivering an average of 400 umol/m2/s across the canopy at 0.2m height, a 12-hour photoperiod provides 17.3 DLI — right in the optimal range. For everbearing varieties, maintain 14 hours to push DLI closer to 20.

The F175 spectrum is particularly well-suited for strawberries because it includes adequate blue for compact growth, strong red for photosynthesis and flowering, and a touch of far-red that enhances overall photosynthetic efficiency. Unlike narrow-spectrum blurple LEDs, the F175 provides full-spectrum white light for easy visual plant inspection.

Heat Management in Multi-Tier Systems

One concern with vertical rack growing is heat accumulation. LEDs are far cooler than HPS, but multiple tiers still add thermal load. The Koray GE35 bars are highly efficient — the 60W model converts most energy into light rather than heat, and the aluminum housing acts as a passive heatsink.

A 5-tier rack with GE35 bars adds only 300W of heat (about 1025 BTU/hr). A small inline fan per tier or room-level HVAC handles this easily. The low heat output allows bars to be mounted closer to the canopy (0.15-0.2m) without thermal damage risk, maximizing PPFD delivery.

Wiring and Power Management

Vertical rack systems benefit from centralized power distribution. The GE35-120T-DC-2H-VR variant supports DC40V centralized power supply, powering all bars on all tiers from a single driver. This reduces wiring complexity, improves electrical safety, and simplifies dimming control.

For AC installations, each GE35-120T-F175 plugs into standard AC120-277V mains. With power factor above 0.9, a 5-tier rack draws just 2.5A at 120V — well within standard circuit capacity.

Economics of Vertical Strawberry Farming with LEDs

The economics are compelling. A 5-tier rack with 3 GE35-120T-F175 bars per tier (15 bars, 900W) operating 12 hours/day at $0.10/kWh costs about $0.33/day or $120/year. Each tier produces 15-25 kg annually, giving 75-125 kg per rack. At $5-10/kg wholesale, revenue ranges from $375-1,250 per rack per year. Electricity is only 10-30% of revenue — a very healthy margin.

Compared to greenhouse growing, vertical farms offer year-round production regardless of season, zero pesticide use, and consistent premium quality. The Koray GE35 series, with 50,000-hour lifespan, operates 10+ years before replacement.

Getting Started: A Practical Setup Guide

Start with a 5-tier shelving unit (1.2m x 0.6m x 2.2m tall). Purchase 15 Koray GE35-120T-F175 bars (3 per tier), mount under each shelf, connect to a timer at 12 hours on/off. Use 15-20L pots or NFT channels with coco coir or perlite substrate. Plant day-neutral varieties like Albion, Seascape, or San Andreas. Maintain 18-24C room temperature, 60-70% humidity. Fertigate at EC 1.5-2.0, pH 5.8-6.2. Expect first harvest within 60-90 days of transplanting.

Summary

Yes, you can absolutely grow strawberries on a vertical rack with LED bars — and it is one of the most profitable approaches to indoor farming. Koray Lighting’s GE35 series delivers the perfect combination of full-spectrum light, energy efficiency, slim form factor, and commercial durability. With 2-3 bars per shelf, 0.4-0.5m tier spacing, and 12-14 hours daily light, you achieve the 16-20 DLI strawberries need. Visit www.koraylights.com to order GE35 bars and get a custom lighting plan.
